Add native ICCP Server connectivity to your existing architecture. Expose selected plant, fleet or grid-edge data to authorized utility, system operator, EMS and dispatch systems with Native IEC 60870-6/TASE.2 Connectivity
Add native ICCP Server connectivity to your existing architecture. Expose selected plant, fleet or grid-edge data to authorized utility, system operator, EMS and dispatch systems with Native IEC 60870-6/TASE.2 Connectivity
Connect plant, fleet, and grid-edge data to control and dispatch systems operated by TSOs, DSOs, utilities, and generators. N3uron brings native ICCP/TASE.2 connectivity into the same operational data layer used to acquire, process, and expose industrial data, reducing the need for additional integration layers between OT data sources and external control systems.

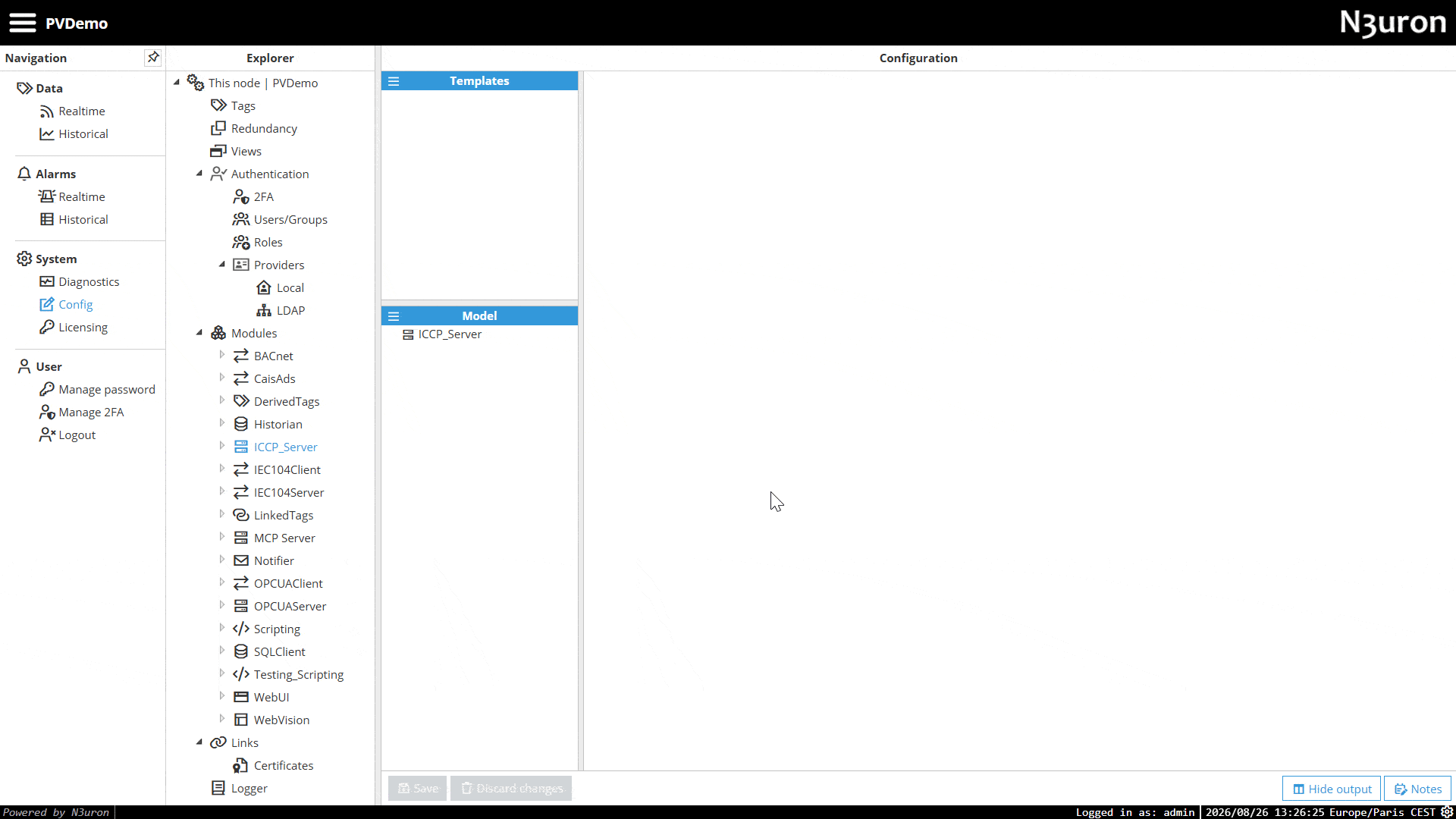

Configure ICCP Directly from Your Web Browser
Create and configure ICCP server instances, data models, tag mappings, and security settings directly through N3uron’s WebUI, including Virtual Control Centers, Domains, Bilateral Tables, DataSets, and Data Points.
For larger models, CSV import and export provides an efficient option for bulk configuration and ongoing updates.
Organize operational data through Virtual Control Centers and Domains, then use DataSets, DataSet Transfer Sets and Bilateral Tables to define what each counterparty can discover, read or control.
Integrated Security for ICCP Data Exchange

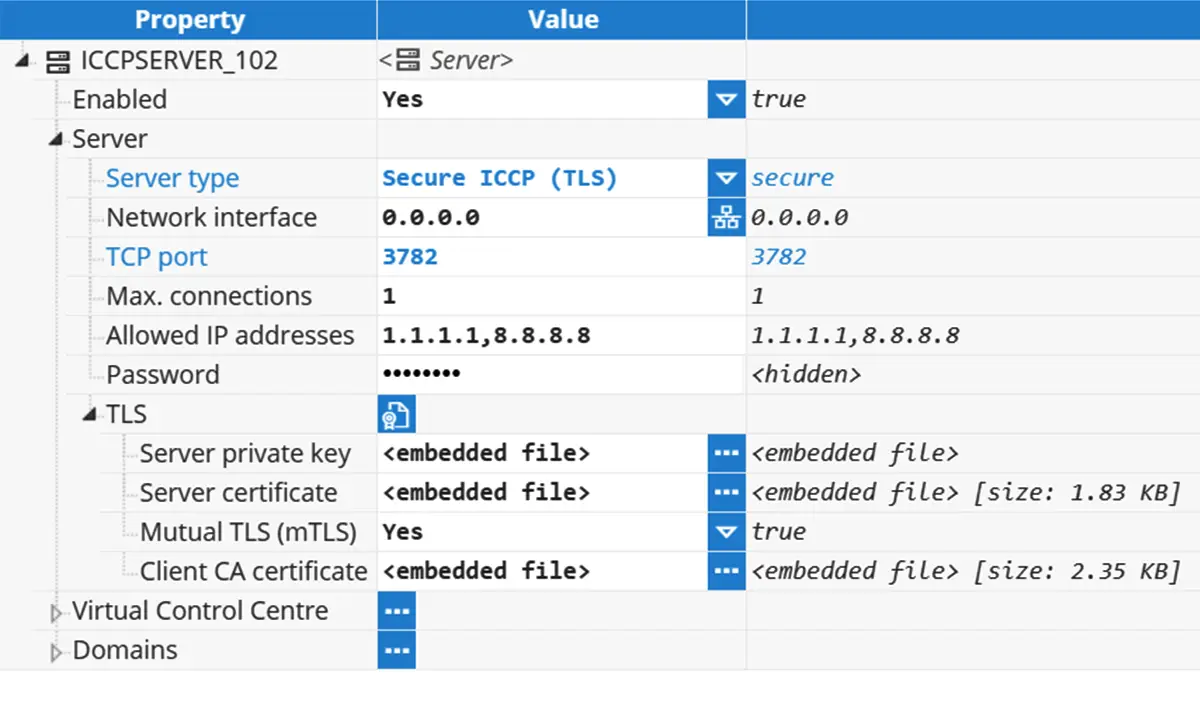

Choose Standard ICCP or TLS-encrypted Secure ICCP for each server instance. TLS is included, with optional mutual certificate verification, client IP allow-listing and password authentication.
Choose Standard ICCP or TLS-encrypted Secure ICCP for each server instance. TLS is included, with optional mutual certificate verification, client IP allow-listing and password authentication.

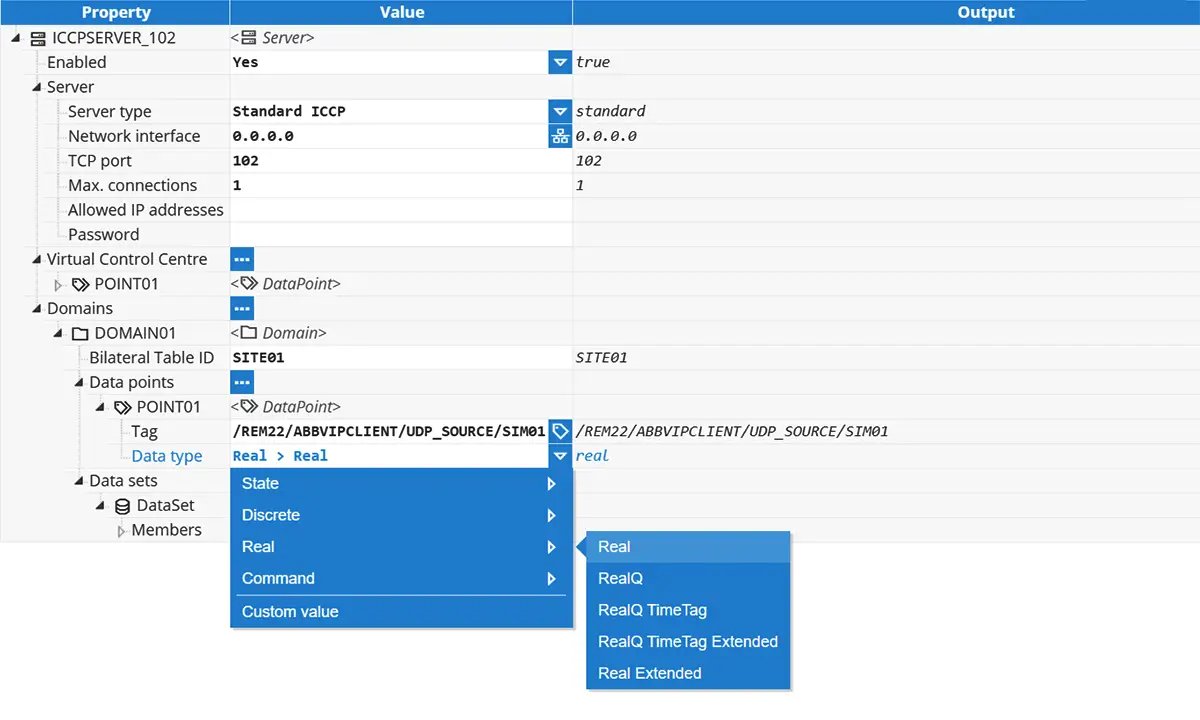

N3uron implements Blocks 1, 2 and 5 for telemetry, status, events and permitted controls. It supports State, Discrete and Real indications, plus Command and setpoint objects, including quality and time-tag variations.
Multi-Client ICCP Connectivity

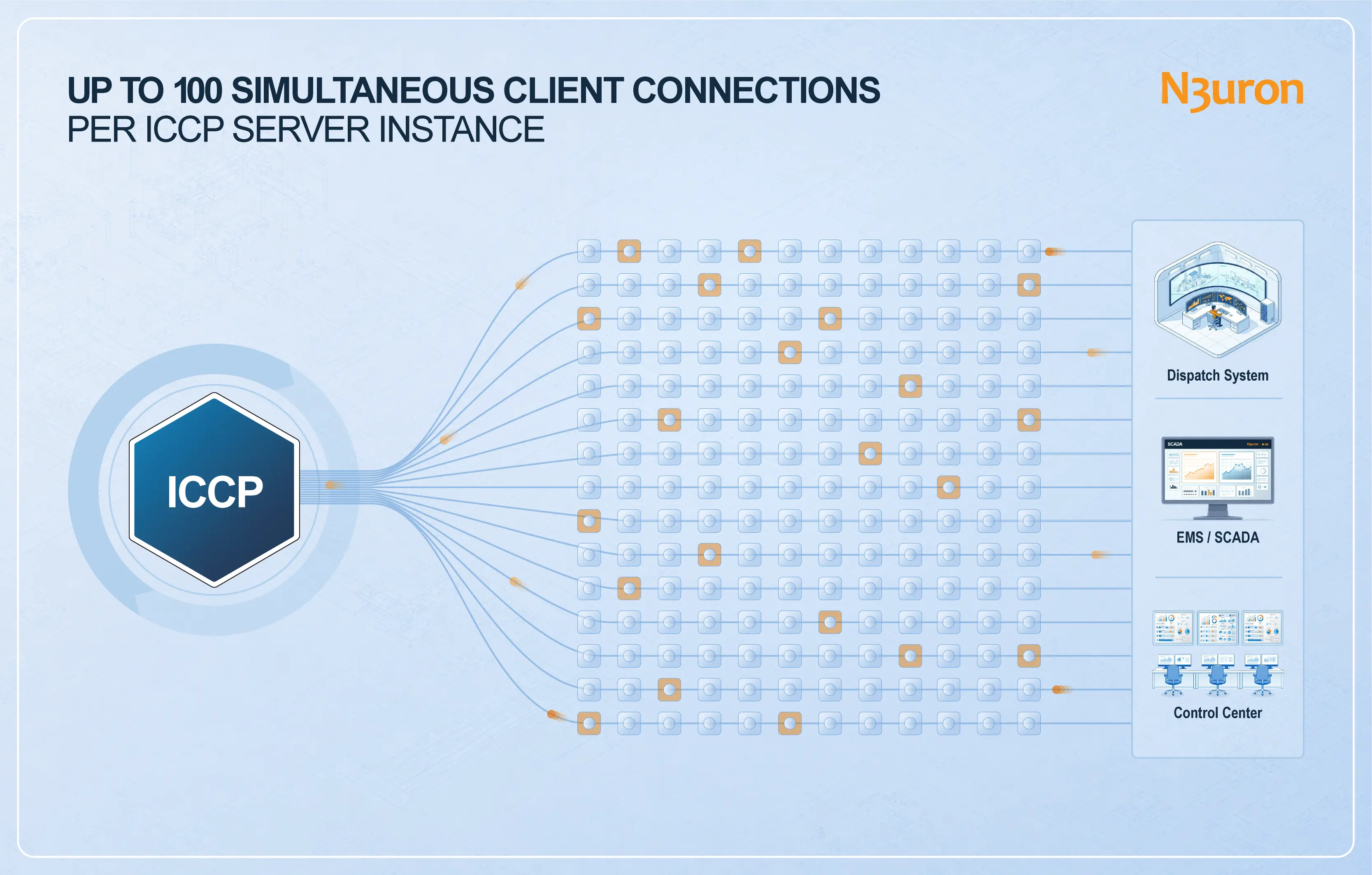

The ICCP Server connects your operational data with multiple control and dispatch systems, supporting up to 100 simultaneous client connections per server instance for flexible multi-system integration.
The ICCP Server connects your operational data with multiple control and dispatch systems, supporting up to 100 simultaneous client connections per server instance for flexible multi-system integration.
Turn existing operational data into an ICCP-ready interface

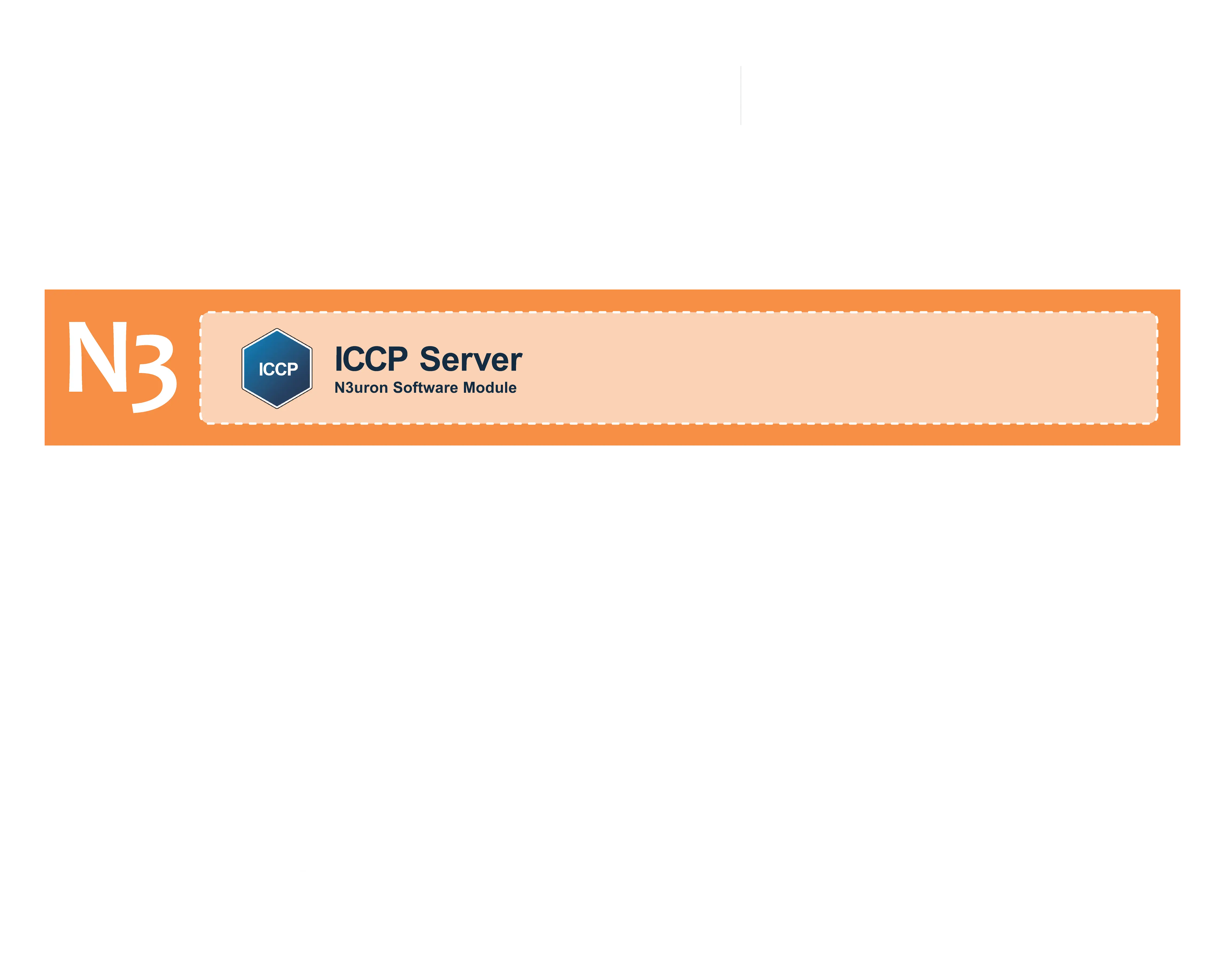

N3uron acquires, structures, processes and exposes data within the same modular platform. N3uron maps the configured tag values into ICCP State, Discrete and Real data representations, including data acquired through OPC UA, Modbus, DNP, OPC DA, IEC 104, MQTT and more. This approach can be applied consistently across generation, storage and distributed assets while keeping each counterparty’s bilateral ICCP scope separate.
Web-Based ICCP Engineering
Configure ICCP server instances, data models, tag mappings, and security settings through N3uron’s WebUI, with CSV import and export available for bulk configuration.
Unified OT-to-ICCP Architecture
Acquire, process, and expose operational data through the same N3uron platform, reducing the need for additional integration layers between OT data sources and external control systems.
Controlled Multi-Client Data Exchange
Connect multiple control and dispatch systems while using VCCs, Domains, and Bilateral Tables to control the operational data made available to each ICCP client.
Standards-Based Grid Interoperability Connect operational data with TSO and DSO systems through native IEC 60870-6/TASE.2 connectivity.
Integrated Secure ICCP
Configure TLS encryption, optional mTLS client verification, IPv4 allow-listing, and configurable password authentication for external ICCP connections.
Flexible Deployment and Licensing Deploy N3uron on Windows, Linux, or ARM with a modular, perpetual licensing model. Licenses include unlimited tags, connections, clients, and devices.
Web-Based ICCP Engineering Configure ICCP server instances, data models, tag mappings, and security settings through N3uron’s WebUI, with CSV import and export available for bulk configuration.
Unified OT-to-ICCP Architecture Acquire, process, and expose operational data through the same N3uron platform, reducing the need for additional integration layers between OT data sources and external control systems.
Controlled Multi-Client Data Exchange Connect multiple control and dispatch systems while using VCCs, Domains, and Bilateral Tables to control the operational data made available to each ICCP client.
Standards-Based Grid Interoperability Connect operational data with TSO and DSO systems through native IEC 60870-6/TASE.2 connectivity.
Integrated Secure ICCP
Configure TLS encryption, optional mTLS client verification, IPv4 allow-listing, and configurable password authentication for external ICCP connections.
Flexible Deployment and Licensing Deploy N3uron on Windows, Linux, or ARM with a modular, perpetual licensing model. Licenses include unlimited tags, connections, clients, and devices.
N3uron is compatible with all major SCADA systems, including our fully integrated Web Vision SCADA solution for easy integration.
Avoid data loss with N3uron’s built-in Store&Forward mechanism, ensuring data continuity even during connectivity interruptions.
N3uron’s modular platform allows you to extend functionality by adding new modules as needed.
N3uron operates on both Windows and Linux, offering access and configuration from any device.
N3uron licenses support unlimited tags, devices, and clients, giving you complete flexibility.
N3uron provides a fully web-based interface for remote monitoring and management, following trusted IT standards like MQTT, OPC UA, REST, SQL, and JSON.
N3uron is compatible with all major SCADA systems, including our fully integrated Web Vision SCADA solution for easy integration.
Avoid data loss with N3uron’s built-in Store&Forward mechanism, ensuring data continuity even during connectivity interruptions.
N3uron’s modular platform allows you to extend functionality by adding new modules as needed.
N3uron operates on both Windows and Linux, offering access and configuration from any device.
N3uron licenses support unlimited tags, devices, and clients, giving you complete flexibility.
N3uron provides a fully web-based interface for remote monitoring and management, following trusted IT standards like MQTT, OPC UA, REST, SQL, and JSON.
FAQs
An ICCP Server exposes authorized operational data and accepts permitted control operations through IEC 60870-6/TASE.2. It is commonly used between utilities, generators, system operators, EMS platforms, dispatch centers and other external control systems.
Yes. ICCP is the commonly used name, while TASE.2 is the IEC designation within the IEC 60870-6 family. Both terms describe the same control-center data exchange protocol.
Yes, provided N3uron can acquire or receive the required values through a supported interface. Selected tags can then be mapped to the ICCP model without replacing the system that provides the source data. This can cover generation plants, fleets and battery storage systems when the required source data is available through a supported interface.
In architectures where N3uron supports the available source interfaces and the required ICCP profile, the module can provide the server role without a separate single-purpose protocol gateway.
N3uron ICCP Server supports Blocks 1, 2 and 5. These cover the telemetry, status, event and control services implemented by the module.
N3uron supports Standard ICCP and Secure ICCP. Available controls include TLS encryption, optional mutual TLS verification, IPv4 allow-listing and optional password authentication.
No. N3uron licenses modules per node and does not impose license limits per tag, device, connection, client or user.
